Agent：自主选择工具

目录

• 1. 工具定义
  • 1.1 工具：Search
  • 1.2 RAG 工具
  • 1.3 定义工具集
• 2. 创建 Agent
  • 2.1 Prompt
  • 2.2 创建模型实例
  • 2.3 创建 Agent
  • 2.4 创建 AgentExecutor
• 3 Agent 调用实例
  • 3.1 情形一：无需工具的调用
  • 3.2 情形二：调用 search 工具
  • 3.3 情形三：调用 RAG 检索工具
• 4. 小结

在 LangChain 中，Agent 的含义指，给定一组工具，AI 模型能够根据需要决定工具。它的文档中这样写道(docs)：

LangChain Agent的核心思想是，使用大语言模型选择一系列要执行的动作。

在Chain中，一系列动作是硬编码在代码中的。

在Agent中，大语言模型被用作推理引擎，以确定要采取的动作及其顺序。

LangChain 的 Agent 有如下关键概念：

• Schema
  • AgentAction 当前动作
  • AgentFinish Agent完成
  • Intermediate Steps （当前行动之前的）的动作
• Agent
  • Agent Inputs 输入
  • Agent Outputs 输出
• AgentExecutor 执行器
• Tools Agent 可选用的工具

（详见文档：https://python.langchain.com/docs/modules/agents/concepts）

接下来，让我们来通过一个示例快速了解 LangChain Agent的使用。该示例改编自 LangChain Agent QuickStart

1. 工具定义

这里包括两个工具，一是 Tavily 搜索，二是 RAG。

1.1 工具：Search

使用 Tavily 搜索，需要在其网站注册获得 API KEY。我们在 Notebook 中配置环境变量如下：

#@title 配置 Tavily Search API Key，使用Colab中的秘钥

# access your Tavily API key
tavily_api_secret_name = 'tavily'  # @param {type: "string"}

# only for this notebook author, please use input in the upside box
import os
from google.colab import userdata

os.environ["TAVILY_API_KEY"] = userdata.get(tavily_api_secret_name)

创建搜索工具

from langchain_community.tools.tavily_search import TavilySearchResults

search = TavilySearchResults()

我们可以调用它查看效果：

search.invoke("what is the weather in SF")

部分结果：

{'url': 'https://www.sfexaminer.com/news/climate/san-francisco-weather-forecast-calls-for-strongest-2024-rain/article_75347810-bfc3-11ee-abf6-e74c528e0583.html', 'content': "San Francisco is projected to receive 2.5 and 3 inches of rain, Clouser said, as well as gusts of wind up to 45 mph. One of winter's 'stronger' storms to douse San Francisco Bay Area starting Wednesday at 4 a.m. and a 24-hour wind advisory in San Francisco starting at the same time. to Sept. 30) in The City’s history, highlighted by a 10-day stretch last January in which San Francisco received 10.3Updated Feb 2, 2024 3.4 magnitude earthquake strikes near San Francisco Zoo Updated Feb 2, 2024 SF hopes to install 200 heat pumps in 200 days in at-risk homes Updated Feb 2, 2024 On the..."},...

1.2 RAG 工具

这里，我们使用网页加载器，加载网页并进行文本嵌入后，存入 FAISS 向量库。

1. 首先需要安装 FAISS 库等依赖库

!pip install -U faiss-cpu tiktoken --quiet

2. 创建 Retriever(加载文档、嵌入、向量库)

from langchain.text_splitter import RecursiveCharacterTextSplitter
from langchain_community.document_loaders import WebBaseLoader
from langchain_community.vectorstores import FAISS
from langchain_openai import OpenAIEmbeddings

loader = WebBaseLoader("https://docs.smith.langchain.com/overview")
docs = loader.load()
documents = RecursiveCharacterTextSplitter(
    chunk_size=1000, chunk_overlap=200
).split_documents(docs)
vector = FAISS.from_documents(documents, OpenAIEmbeddings())
retriever = vector.as_retriever()

尝试调用：

retriever.get_relevant_documents("how to upload a dataset")

结果：

Document(page_content="dataset uploading.Once we have a dataset, how can we use it to test changes to a prompt or chain? The most basic approach is to run the chain over the data points and visualize the outputs. Despite technological advancements, there still is no substitute for looking at outputs by eye. Currently, running the chain over the data points needs to be done client-side. The LangSmith client makes it easy to pull down a dataset and then run a chain over them, logging the results to a new project associated with the dataset. From there, you can review them. We've made it easy to assign feedback to runs and mark them as correct or incorrect directly in the web app, displaying aggregate statistics for each test project.We also make it easier to evaluate these runs. To that end, we've added a set of evaluators to the open-source LangChain library. These evaluators can be specified when initiating a test run and will evaluate the results once the test run completes. If we’re being honest, most", metadata={'source': 'https://docs.smith.langchain.com/overview', 'title': 'LangSmith Overview and User Guide', 'description': '...', 'language': 'en'}),...

3. 创建 RAG 检索工具

from langchain.tools.retriever import create_retriever_tool

retriever_tool = create_retriever_tool(
    retriever=retriever,
    name="langsmith_search",
    description="Search for information about LangSmith. For any questions about LangSmith, you must use this tool!",
)

其中，create_retriever_tool 接受三个参数：retriever，name， description。文档见：langchain reference

1.3 定义工具集

我们定义一个工具集，它就是 tools 数组，以供 Agent 使用。

tools = [search, retriever_tool]

2. 创建 Agent

2.1 Prompt

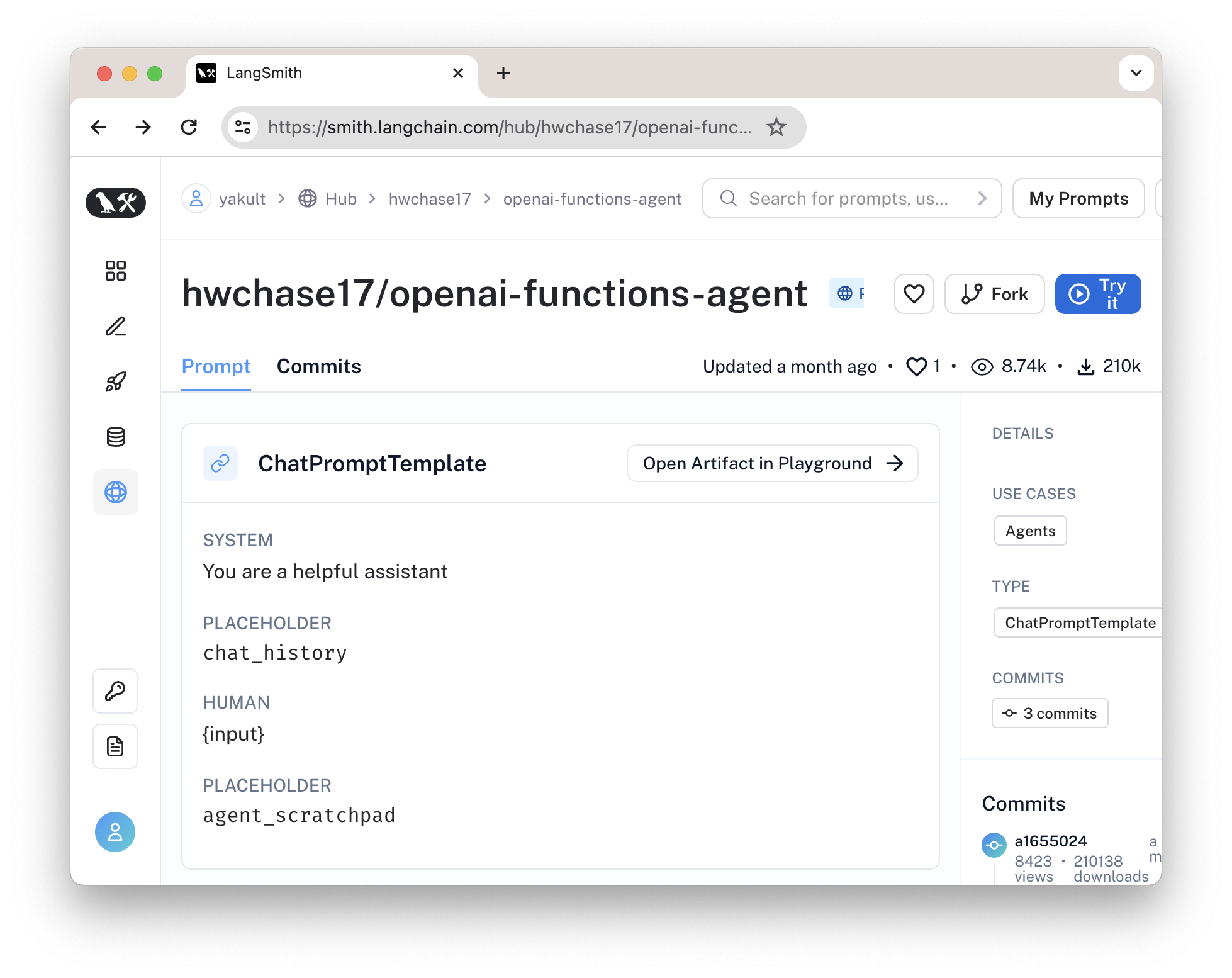

我们调用 LangSmith Hub上的如下模板：

它实际的模板是：

[
    SystemMessagePromptTemplate(
        prompt=PromptTemplate(input_variables=[], template='You are a helpful assistant')),
    MessagesPlaceholder(
        variable_name='chat_history', optional=True),
    HumanMessagePromptTemplate(
        prompt=PromptTemplate(input_variables=['input'], template='{input}')),
    MessagesPlaceholder(variable_name='agent_scratchpad')
]

从 LangSmith Hub加载模板：

from langchain import hub

prompt = hub.pull("hwchase17/openai-functions-agent")

2.2 创建模型实例

from langchain_openai import ChatOpenAI

llm = ChatOpenAI(model="gpt-3.5-turbo", temperature=0)

2.3 创建 Agent

这里使用的是create_openai_tools_agent。文档见：Agent Types-OpenAI tools。

from langchain.agents import create_openai_tools_agent

agent = create_openai_tools_agent(llm, tools, prompt)

请注意如下说明（引自LangChain 文档）：

OpenAI API已弃用 functions，而推荐使用tools。两者之间的区别是，tools API允许一次模型请求使用多个函数调用，这可以减少响应时间。

2.4 创建 AgentExecutor

from langchain.agents import AgentExecutor

agent_executor = AgentExecutor(agent=agent, tools=tools, verbose=True)

在这里，我们设置 verbose=True，以观察 Agent 调用过程。

3 Agent 调用实例

3.1 情形一：无需工具的调用

agent_executor.invoke({"input": "hi!"})

调用过程及结果：

> Entering new AgentExecutor chain...
Hello! How can I assist you today?

> Finished chain.
{'input': 'hi!', 'output': 'Hello! How can I assist you today?'}

3.2 情形二：调用 search 工具

agent_executor.invoke({"input": "whats the weather in sf?"})

调用过程及结果：

> Entering new AgentExecutor chain...

Invoking: `tavily_search_results_json` with `{'query': 'weather in San Francisco'}`

……

> Finished chain.
{'input': 'whats the weather in sf?',
 'output': 'The weather in San Francisco is currently rainy with gusts of wind up to 45 mph. There is a strong storm expected to douse the Bay Area with 2.5 to 3 inches of rain. There is also a wind advisory in effect. Flights at San Francisco International Airport have been delayed and canceled due to the gusty winds. You can find more information about the weather in San Francisco in the following articles:\n\n1. [San Francisco Examiner - Climate](https://www.sfexaminer.com/news/climate/san-francisco-weather-forecast-calls-for-strongest-2024-rain/article_75347810-bfc3-11ee-abf6-e74c528e0583.html)\n2. [SF Standard - Gusty Winds Cause Delays at SFO, Power Outages as Powerful Storm Pounds the Bay](https://sfstandard.com/2024/02/04/gusty-winds-cause-delays-at-san-francisco-airport-power-outages-as-powerful-storm-pounds-the-bay/)\n3. [CNN - Atmospheric river brings heavy rain, flooding to California](https://www.cnn.com/2024/02/04/us/california-atmospheric-river-flooding/index.html)'}

3.3 情形三：调用 RAG 检索工具

agent_executor.invoke({"input": "how to use LangSmith"})

注意：逻辑上，这里应当调用 RAG 检索，但实际上不成功，多次采用 GPT-3.5-turbo、GPT-4-Turbo-preview 模型均未能奏效。仅有 GPT-4 能成功调用 RAG 检索工具，过程如下：

Invoking: `langsmith_search` with `{'query': 'how to use LangSmith'}`


LangSmith Overview and User Guide |  LangSmith

……

> Finished chain.
{'input': 'how to use LangSmith',
 'output': "LangSmith is a tool designed to simplify the setup of reliable LLM applications. Here's a brief guide on how to use it:\n\n1. **Tracing**: At LangChain, LangSmith's tracing is always running in the background. This is achieved by setting environment variables, which are established whenever a virtual environment is launched or a bash shell is opened.\n\n2. **Editing and Adding Examples**: You can quickly edit examples and add them to datasets to expand the evaluation sets or to fine-tune a model for improved quality or reduced costs.\n\n3. **Monitoring**: LangSmith can be used to monitor your application in the same way you used it for debugging. You can log all traces, visualize latency and token usage statistics, and troubleshoot specific issues as they arise. Each run can also be assigned string tags or key-value metadata, allowing you to attach correlation ids or AB test variants, and filter runs accordingly.\n\n4. **Feedback**: It's possible to associate feedback programmatically with runs. If your application has a thumbs up/down button on it, you can use that to log feedback back to LangSmith. This can be used to track performance over time and pinpoint underperforming data points, which you can subsequently add to a dataset for future testing.\n\n5. **Exporting Datasets**: LangSmith makes it easy to curate datasets. These datasets can be exported for use in other contexts, such as for use in OpenAI Evals or fine-tuning, such as with FireworksAI.\n\nFor more detailed instructions and examples, you can refer to the LangSmith documentation."}

4. 小结

在本教程中，我们通过示例详细了解创建能够由 AI 模型自主选择工具的 Agent 应用模式。你可以参考 LangChain 文档中的 Agent 部分获得更多信息，同时，你可以选用 LangGraph 来创建复杂的 Agent 逻辑。

---

参考资料：

• https://python.langchain.com/docs/modules/agents/quick_start
